This is the test case n°4 of the workshop JINA04. It is monostatic RCS computation.

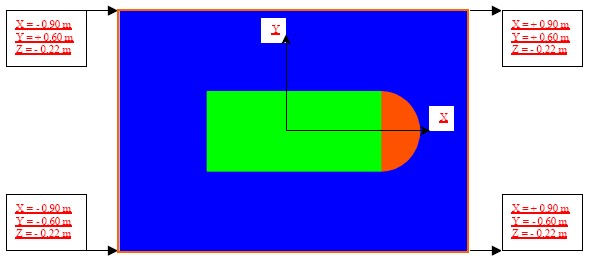

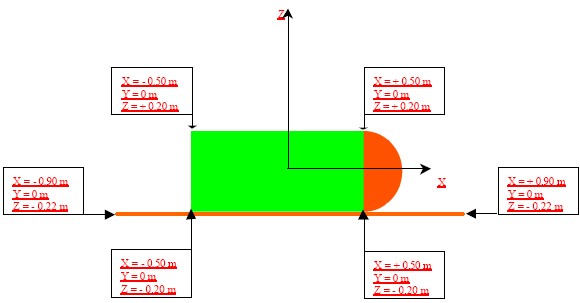

Description of the target :

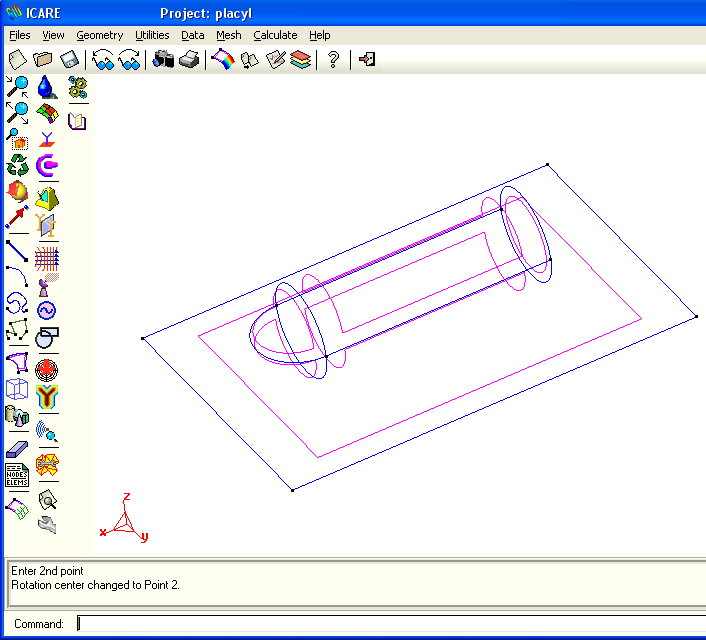

The same geometry designed with GiD (should be easy to do, since the geometry contains only simple shapes) :

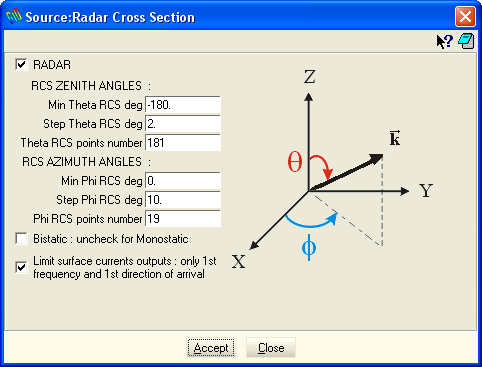

Set the RCS computation. Since there are a lot of directions of incidence (181x37=6697), it is recommended to limit the surface currents outputs :
The operating frequency is 1 GHz.
Assign the interface properties over the surfaces, generate the mesh, run.
The computed radar cross section is available in 3D view as presented in the following snapshots.

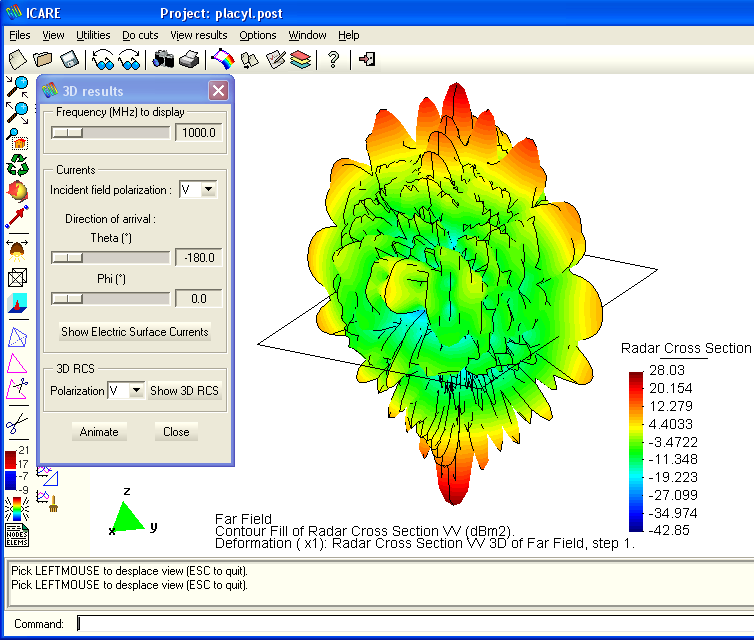

Vertical polarization :

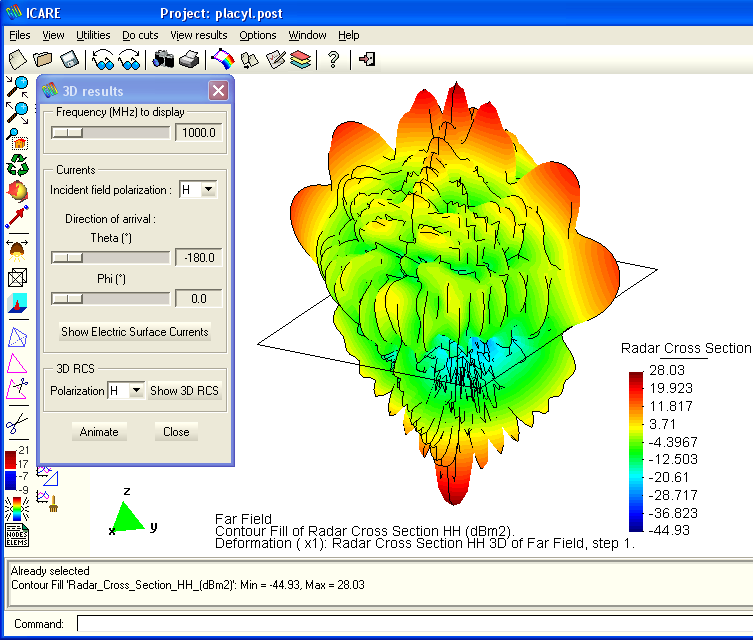

Horizontal polarization :
